Retrofitting STS cranes

Accra, Ghana

+25 %throughput-kapazität

largest deep
water port
of Ghana

Key data

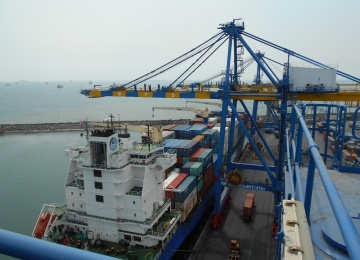

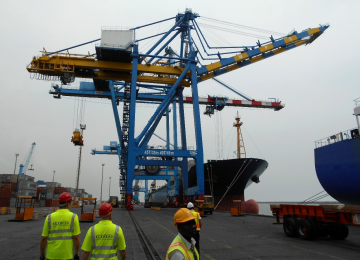

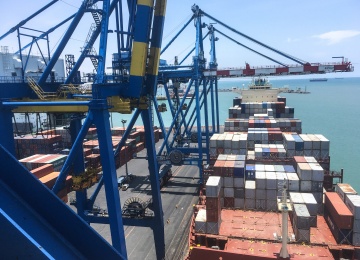

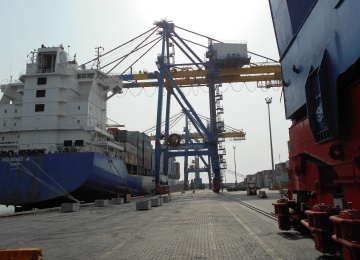

3 STS (ship to shore) cranes:
Generalsanierung der elektrotechnischen Antriebseinheiten, der Steuerungen und des gesamten Kranmanagement Systems. Modernisierung der Sicherheitstechnik.


Fakten:
General refurbishment of electrical drive units, control systems and the entire crane management system. Safety technology modernisation.


Facts & figures:

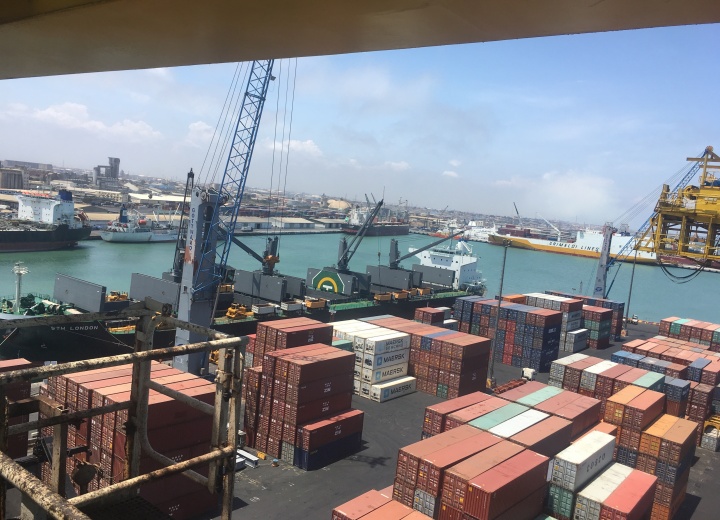

The terminal handles 125,000 containers per month, which is just under 70% of the country’s sea freight. The container terminal has a 247,000-square-metre container yard (tarred) with a shunting area and a 574-metre-long deep-water quay with a depth of 11.5 metres. The throughput in 2012 was three quarter of a million containers.

A conversion was made from reach stackers to rubber-tyred gantries (RTGs). The transition to RTGs increased throughput by 25%.

Statistics


Project included

  • General refurbishment of electrical drive units, control systems and the entire crane management system for three STS cranes
  • Safety technology modernisation
  • Planning and engineering
  • Documentation
  • Delivery
  • Installation and commissioning of switchgear with inverter units for hoists/trolleys and boom/gantry motors
  • Delivery and installation of trolley and gantry motors

Control system used
Siemens S7-416F

Visualisation programme/process control technology
WinCC V13 Advanced
